Formech HD1000 vacuum former (US spec)
The HD1000 offers a large forming area for demanding and/or large items, and makes full use of its semi-automated features to ease operation.
With a range of high-end features as standard, such as the pneumatic clamping, table, heater drive with quartz elements, cooling system, vacuum tank, safety light curtain, and remote connectivity, the HD1000 is a popular choice for industrial thermoforming production lines across the world.
Its extensive range of options includes a double heater system, with heating elements above and below the sheet.
Designed for a sheet size of 1000x1000mm, the HD1000 has a maximum draw depth of 600mm and a maximum material thickness of 6mm.
20 independently controllable heating zones
Provide rapid heat response with a greater range of control to form challenging shapes and materials
Formech Cycle View (FCV) with multi-programme memory and 10” hi-res touchscreen
Machine cycle status is clearly visible at a glance and all parameters can be adjusted in real time without interrupting the current cycle. Nameable memory pre-sets enable convenient recall of settings for each application.
Heating pyrometer
Sensor to provide accurate sheet temperature feedback and initiate mould release upon reaching target temperature.
What's included?
- A table mesh
- 3/4" BSP regulator for air connection
- Heating pyrometer
- Cooling pyrometer
Video Library
Watch our automatic models in action on our YouTube channel.
Request a quote now
With so many options and accessories, Formech HD Series vacuum forming machines can be configured in multiple ways. We will advise on the right set-up for your products and projects, run tests on your tooling and materials, then create a bespoke quote based on your requirements and needs. Typical delivery time is 10-12 weeks from payment.
NB: The minimum material thickness is 0.25mm/0.009843 inches. To use a thinner material, please contact us to discuss sending a sample to test.
Please request a quote to set-up a consultation about your requirements
SKU: m11-01-2
Request a quote
Note:
By requesting a quote, any items you may have added to your cart will be removed,
Formech HD1000 (US spec) Features
Optional extras
HD1000 Technical specifications
Forming capacity
Forming area | 960 x 960 mm |
Sheet size | 1000 x 1000 mm |
Max depth of draw | 600 mm |
Max material thickness | 6 mm |
Dimensions
Machine width | 2663 mm |
Machine height | 2350 mm |
Machine depth | 3779 mm |
Machine weight | 1800 kg |
Power
USA – 3 phase power requirements | 208-240V / 100A |
Power consumption (kW) | 40 |
3 Phase power requirements | 380-415V / 80A |
Air
Air requirements (PSI/bar) | 87 / 6 |
Operating interface | 9.7" Colour HMI |
Vacuum pump type | Oil filled rotary vane pump |
Pump flow (SCFM @ 0 in. / 60Hz) | 15.9 |
Pump flow m3 /h @ 0mbar / 50Hz | 23.5 |
Mould release method | External air supply |
Heating
Heater type | Quartz |
Heating zones | 20 |
More from this range: Semi / Fully Automatic

Formech HD686 vacuum former (US spec)
Starting at
$68,500.00
Forming area
647 x 622 mm
Depth of Draw
350 mm
Sheet size
686 x 660 mm

Formech HD750 vacuum former (US spec)
Starting at
$68,500.00
Forming area
700 x 500 mm
Depth of Draw
350 mm
Sheet size
750 x 540 mm

Formech HD1000c-T vacuum former (US spec)
Starting at
$119,500.00
Forming area
960 x 560 mm
Depth of Draw
500 mm
Sheet size
1000 x 600 mm

Formech HD1500-T vacuum former (US spec)
Please request a quote to set-up a consultation about your requirements
Forming area
1460 x 960 mm
Depth of Draw
600 mm
Sheet size
1500 x 1000 mm

Formech TF686 reel-fed vacuum former (US spec)
Starting at
$87,900.00
Forming area
647 x 622 mm
Depth of Draw
350 mm
Sheet size
686 x 660 mm

Formech TF750 reel-fed vacuum former (US spec)
Starting at
$87,900.00
Forming area
700 x 500 mm
Depth of Draw
350 mm
Sheet size
750 x 540 mm

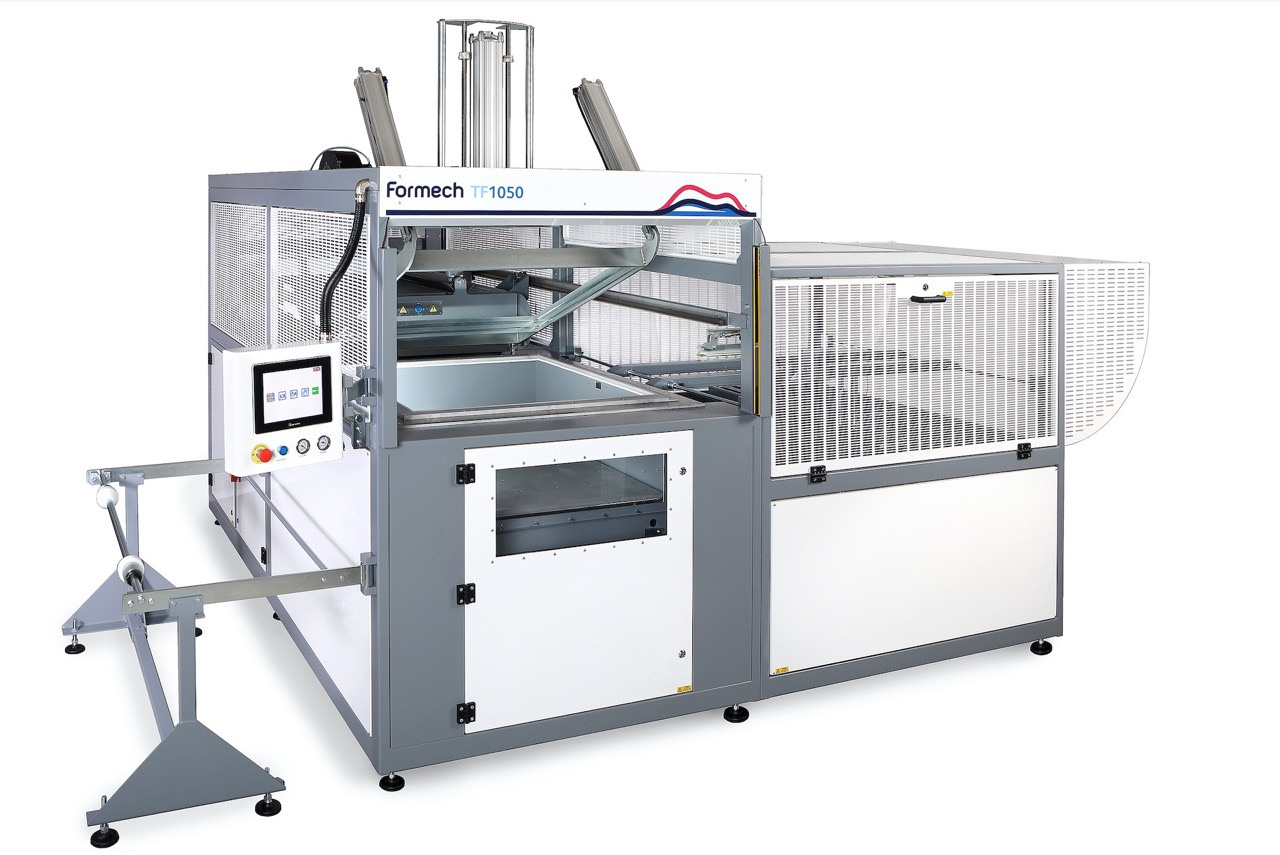

Formech TF1050 reel-fed vacuum former (US spec)
